UHMW-PE Porous Filters
Short Description:
1. Material: UHMW-PE Powder
2. Technical Data:
1) Filter Grade: 0.50μm – 80μm
2) Porosity: 30%- 60%
3) Working Temperature: 80℃ Max.
4) Compressive Strength: 6.5MPa Max.
5) Pressure Drop: 1MPa Max.
6）Allowable Working Environment: Acid, Alkali, High Temperature (80℃)
Send email to us
Download as PDF

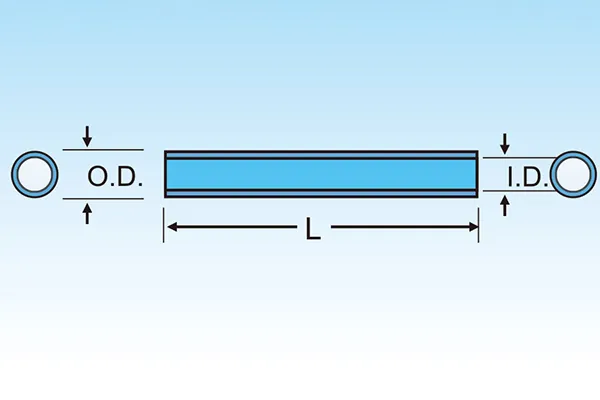

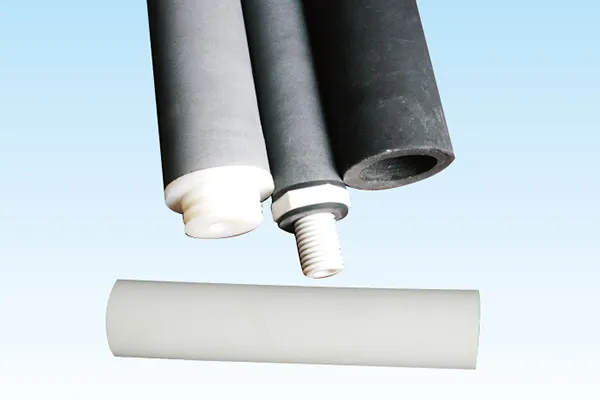

1) SEAMLESS TUBES
|
SEAMLESS TUBES |
OD, MM |
ID, MM |
L, MM |
|
Smallest |
20 |
14 |
50 |
|
Largest |
100 |
80 |
3600 |
Joint Type: M20, M30, M40, 215,220,222,226, 228, other joints as requests

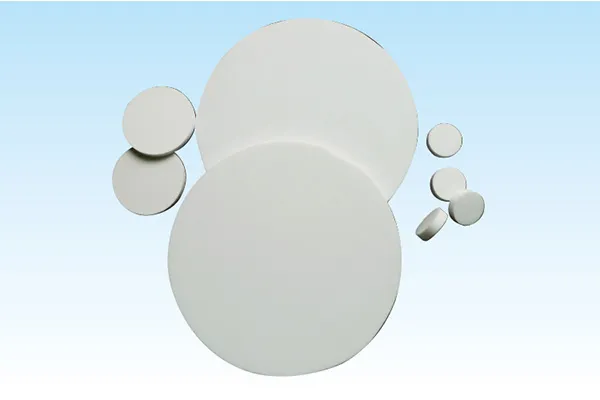

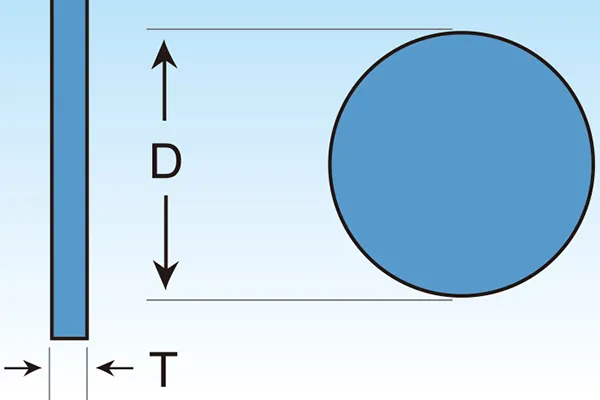

2) DISCS
|
DISCS |
D, MM |
T, MM |
|
Min. |
2 |
1 |
|
Max. |
1000 |
30 |

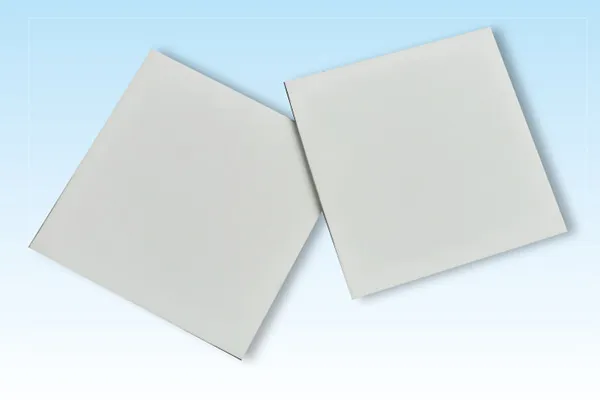

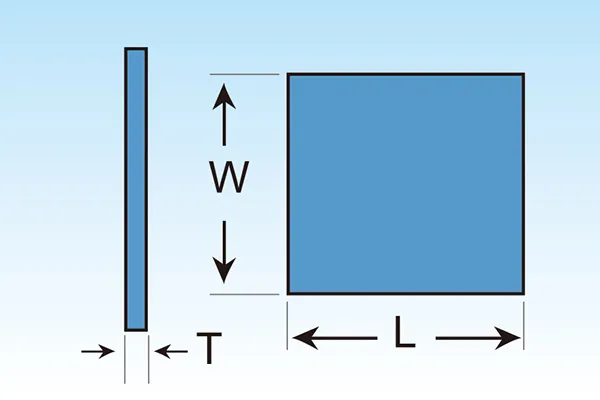

3) SHEETS
|
SHEETS |
L, MM |
W, MM |
T, MM |
|
Min. |
2 |
2 |
1 |
|
Max. |
1500 |
800 |
30 |

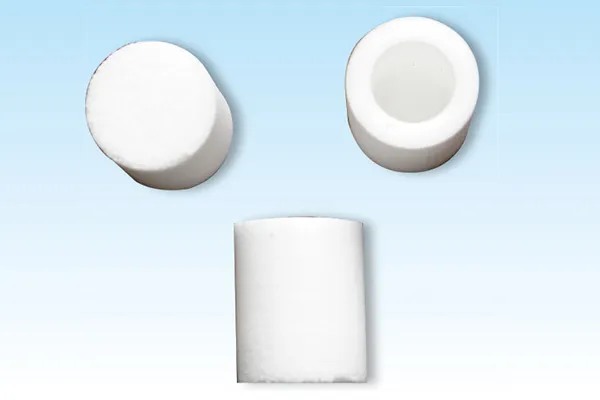

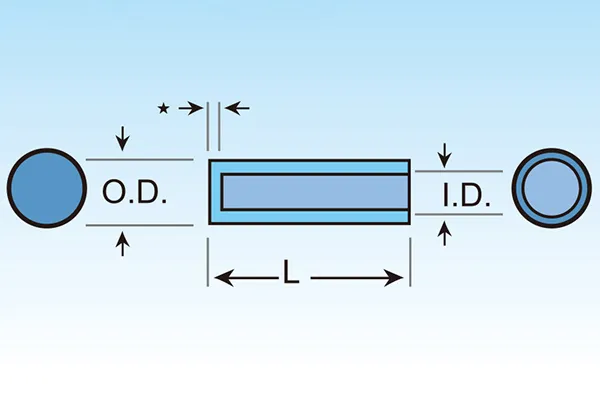

4) CUPS
|
CUPS |
ID, MM |
OD, MM |
L, MM |
|
Min. |
1 |
3 |
3 |
|
Max |
200 |
250 |
500 |
