PTFE Porous Filters
Short Description:
1. Material: PTFE Powder
2. Technical Data:
1) Filter Grade: 1μm – 50μm
2) Porosity: 30%- 60%
3) Working Temperature: 200℃ Max.
4) Compressive Strength:6.5MPa Max.
5) Pressure Drop: 1MPa Max.
6）Allowable Working Environment: Acid, Alkali, Solvent, High Temperature (200℃)
Send email to us
Download as PDF

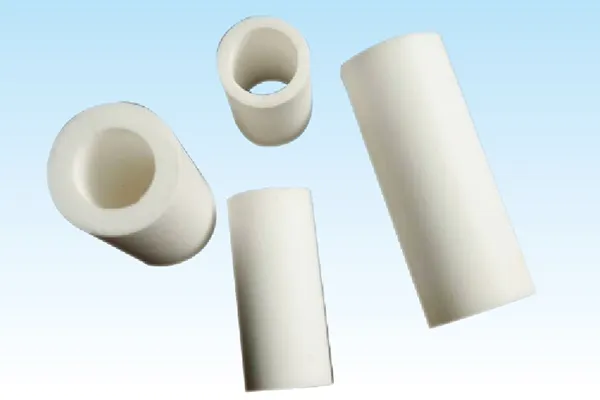

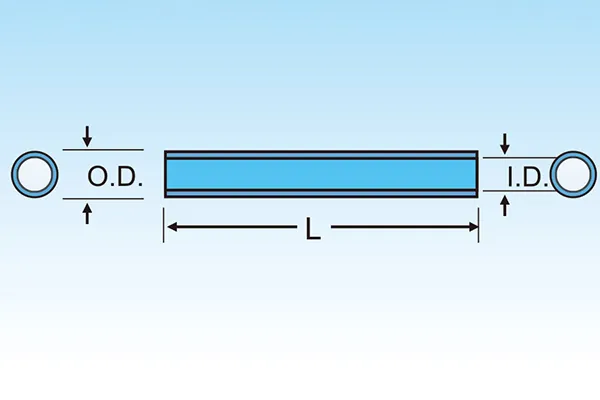

1) STEAMLESS TUBES
|
SEAMLESS TUBES |
OD, MM |
ID, MM |
L, MM |
|
Smallest |
5 |
2 |
50 |
|
Largest |
50 |
40 |
200 |

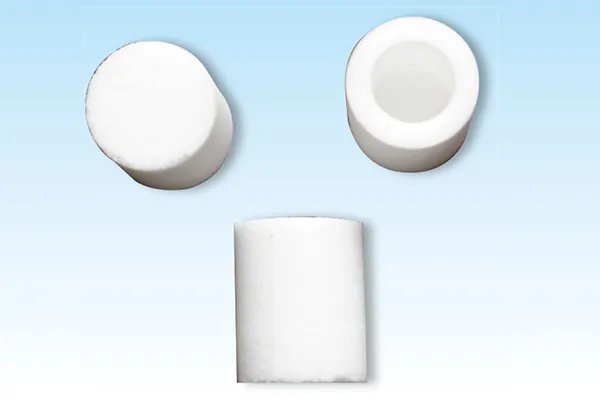

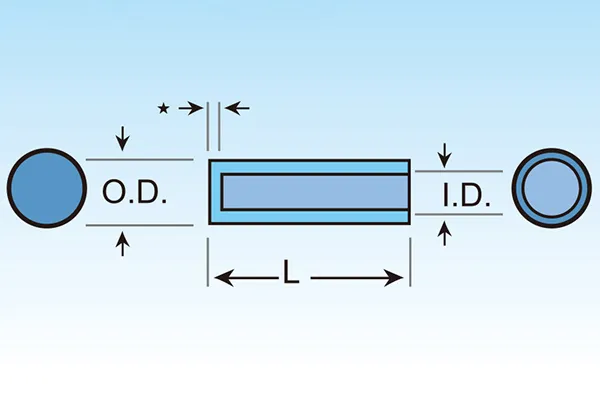

2）CUPS
|
CUPS |
ID, MM |
OD, MM |
L, MM |
|
Min. |
1 |
3 |
3 |
|
Max. |
40 |
50 |
200 |
