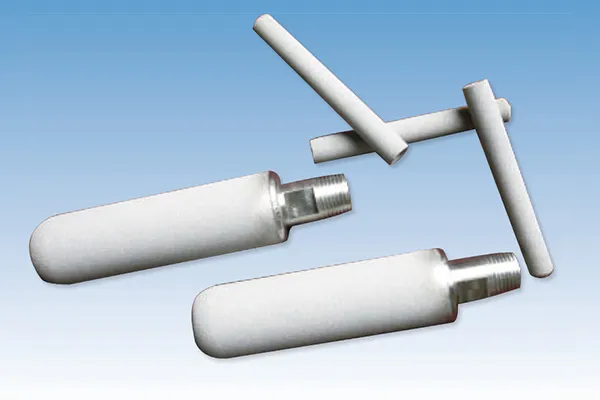

Stainless Steel Porous Filters
Short Description:
1. Material: S.S.316L powder
2. Technical Data:
1) Filter Grade: 0.3μm, 0.45μm, 1μm , 3μm, 5μm,10μm, 20μm ,30μm, 50μm, 80μm,100μm,150μm,200μm
2) Porosity: 28-50%
3) Working Temperature Max.: 380℃
4) Compressive Strength: 0.5-2.5MPa
5) Pressure Drop: 2.0MPa Max
3. Allowable Working Environment: Nitric Acid, Sulphuric Acid, Atetic Acid, Oxalic Acid, Phosphoric Acid, 5% Hydrochloric Acid, Liquid Chlorine, Liquid Nitrogen, Sulfureted Hydrogen, Acetylene, Water Vapour,Hydrogen, Gas, Carbon Dioxide, Etc.
Send email to us
Download as PDF

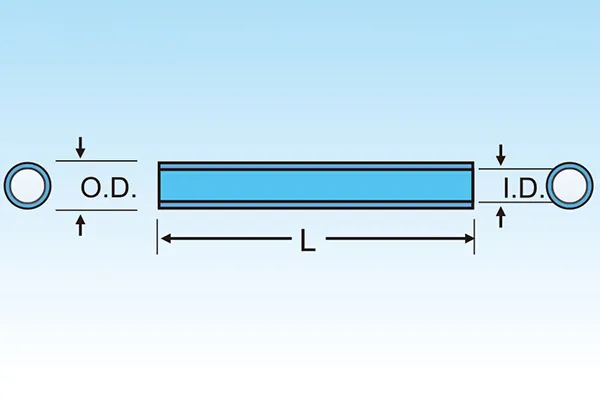

1) STEAMLESS TUBES
| SEAMLESS TUBES | OD, MM | ID, MM | L, MM |
| Smallest | 22 | 20 | 50 |
| Largest | 120 | 110 | 1500 |
| Special sizes to be ordered | |||
JOINT TYPE: M20, M30, M40, 215,220,222,226, 228, NPT, BSP, BSPT, Flanges, other joints as requests

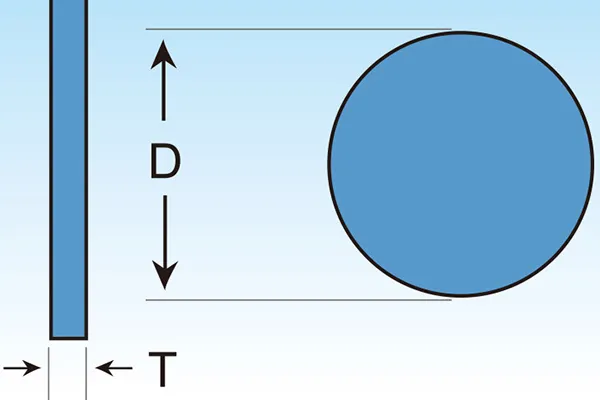

2）DISCS
|
DISCS |
D, MM |
T, MM |
|
Min |
- |
0.5 |
|
Max. |
400 |
- |
| Special sizes to be ordered | ||

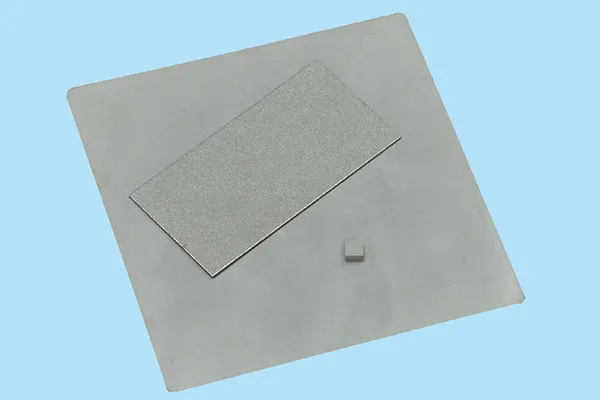

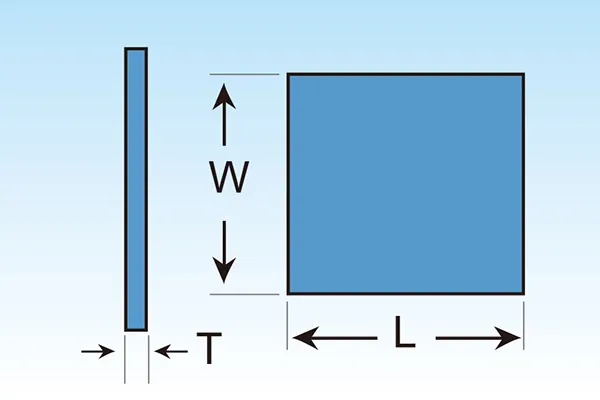

3）SHEETS
|
SHEETS |
W x L, MM |
THICKNESS, MM |
|
5*5 Min. |
0.5 MIN. |
|
|
280*280 Max. |
- |
|
| Special sizes to be ordered | ||
