In the intricate dance of modern industry, where purity, efficiency, and reliability are non-negotiable, the choice of filtration technology becomes a cornerstone of operational success. Among the myriad options available, one solution stands out for its robust engineering and exceptional versatility: the sintered metal porous disc filter. This advanced component is not merely a filter; it is a critical piece of process integrity, engineered to perform under the most demanding conditions. At POROYAL, our dedication to pioneering powder sintered porous filter technology has positioned us at the forefront of developing these indispensable solutions. We specialize in transforming complex challenges across petrochemical, pharmaceutical, food and beverage, and countless other sectors into opportunities for enhanced performance and measurable success through our high-value sintered metal filters.
The Engineering Excellence of a Sintered Metal Disc Filter
At its core, a sintered metal disc filter is a masterpiece of material science and precision engineering. The process involves fusing meticulously sized metal powder particles—most commonly high-grade materials like S.S.316L—under controlled heat and pressure. This sintering process does not merely create a mesh; it forms a monolithic, porous structure with a complex, interconnected network of pathways. The result is a filter medium of exceptional strength and uniformity. Unlike woven screens or disposable cartridges, this solid metal construct offers inherent structural integrity, capable of withstanding significant pressure differentials, high temperatures up to 380℃, and mechanical shock. The pore structure is precisely controlled, yielding consistent filtration grades from ultrafine 0.3μm to coarse 200μm. This inherent durability and precision make the sintered metal disc filter a permanent, reliable asset, designed for repeated cleaning and long-term service, ultimately reducing waste and total cost of ownership. POROYAL’s expertise ensures every disc delivers predictable performance, batch after batch.
Multifaceted Performance of Sintered Metal Porous Disc Filters

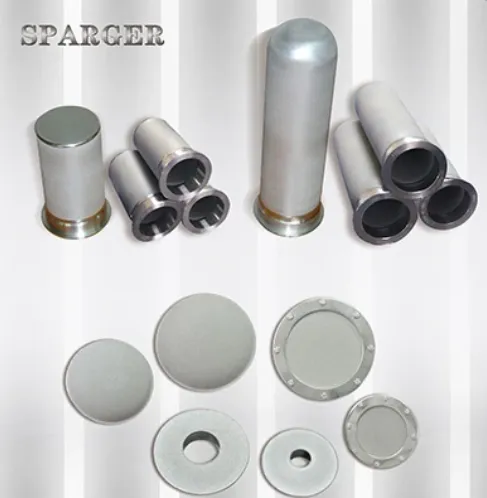

The true value of a sintered metal porous disc filter is revealed in its broad and adaptable performance portfolio. Its unified porous matrix enables it to excel in three fundamental operational modes: filtration, distribution, and diffusion. As a filter, it provides depth filtration, trapping contaminants throughout its thickness rather than just on the surface, which translates to a higher dirt-holding capacity and extended service cycles. This is crucial for applications like catalyst recovery in chemical reactors or final product polishing in pharmaceutical synthesis. As a diffuser or sparger, the sintered metal porous disc filter creates a consistent, fine dispersion of gases into liquids, essential for aerobic fermentation in biotechnology or carbonation in beverage production. Its corrosion-resistant nature, compatible with environments from acetic acid to hydrogen gas, ensures stable performance even with aggressive media. Furthermore, its ability to function as a uniform flow distributor in scrubbers or fluidized beds highlights its role beyond simple sieving, making it a multifaceted process component that enhances overall system efficiency and reliability.
Industry-Specific Solutions with Sintered Metal Filters
The adaptability of sintered metal filters allows them to provide targeted solutions across a stunning array of industries. In the petrochemical and oilfield sector, they are deployed for critical tasks such as filtering produced water, protecting catalyst beds, and venting storage tanks, where their robustness ensures safety and continuity. The food and beverage industry relies on them for sterile hot air filtration, clarifying edible oils, and ensuring the microbiological stability of beers and juices, leveraging their cleanability and non-shedding properties. Pharmaceutical manufacturing utilizes these filters for sterilizing-grade venting on fermenters, clarifying active pharmaceutical ingredients (APIs), and as support plates for ultra-fine membranes, where product purity is paramount. In water treatment, sintered metal filters serve in pre-filtration and back washable systems. Even in advanced fields like vacuum conveying and additive manufacturing, they ensure smooth powder flow and protect sensitive components. POROYAL’s integrated approach, combining our divisions focused on Metal Sintered Porous Filters, Plastic Sintered Porous Filters, and Metal Fibers, allows us to engineer the perfect specification—whether it’s a standard sintered metal disc filter or a custom-designed assembly—to meet the exact needs of each unique application.
Technical Specifications and Selection Guide for Sintered Metal Filters
Selecting the correct sintered metal porous disc filter requires careful consideration of key technical parameters to ensure optimal performance in your specific application. The following table outlines the core specifications for our standard S.S.316L sintered metal filters, providing a clear guide for engineers and procurement specialists. These parameters directly influence the filter's efficiency, flow rate, service life, and compatibility.
Parameter Specification Range Impact on Application
|
Property |
Details |
|
Material |
S.S.316L Powder. Provides excellent corrosion resistance to a wide range of chemicals including acids, alkalis, and solvents, ensuring longevity in aggressive environments. |
|
Filter Grade (Pore Size) |
0.3μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 30μm, 50μm, 80μm, 100μm, 150μm, 200μm. Determines filtration precision. Finer grades are for sub - micron particle removal and sterilization; coarser grades are for coarse filtration, sparging, and flow distribution. |
|
Porosity |
28% - 50%. Affects the dirt - holding capacity and flow resistance. Higher porosity generally allows for greater contaminant loading and higher flow rates at a given pressure drop. |
|
Max. Working Temperature |
380°C. Enables reliable operation in high - temperature processes such as hot gas filtration, polymer melt streams, and high - temperature catalysis. |
|
Compressive Strength |
0.5 - 2.5 MPa. Indicates the mechanical robustness of the sintered metal disc filter, ensuring it can withstand system pressure surges and physical stress during cleaning and handling. |
|
Max. Pressure Drop |
2.0 MPa. Defines the maximum differential pressure the filter element can sustain without risk of structural damage, a critical factor for system design and safety. |
|
Typical Applications |
Filtration, Sparging, Diffusing, Fluidizing, Venting. Highlights the multifunctional nature of a sintered metal porous disc filters, suitable for roles beyond simple solid - liquid separation. |
About Sintered Metal Porous Disc Filter FAQs
Selecting the right filtration technology is a significant decision. To help clarify the exceptional benefits of sintered metal porous disc filters, we address some of the most common inquiries from our customers.
What are the key advantages of a sintered metal disc filter?
The primary advantages are exceptional durability, thermal and chemical resistance, and long-term cost-effectiveness. Constructed from solid sintered metal, these filters can withstand high pressures, temperatures up to 380℃, and corrosive environments. They are mechanically robust, can be repeatedly cleaned via backwashing or ultrasonic methods, and reinstalled, eliminating the recurring cost of disposable filter replacements. This makes them a sustainable and economical choice over the lifespan of your equipment.
How does the pore size of a sintered metal porous disc filter affect performance?
The pore size, or filter grade, is the most critical specification for determining what the filter will capture. POROYAL offers a wide range from 0.3μm to 200μm. A finer pore (e.g., 0.45μm) provides higher filtration efficiency for removing microscopic particles or achieving sterile filtration but may result in a higher pressure drop. A larger pore size offers higher flow rates and is suitable for coarse particle separation or gas dispersion. Our experts help you select the optimal grade to balance efficiency, flow, and service life for your specific fluid and process goals.
Can sintered metal filters handle high-temperature and aggressive chemical processes?
Absolutely. This is one of their defining strengths. Manufactured from high-performance alloys like S.S.316L, sintered metal filters offer outstanding corrosion resistance to a wide spectrum of chemicals, including many acids, alkalis, and solvents as listed in our technical data. Their all-metal structure maintains integrity at continuous operating temperatures up to 380℃, making them ideal for hot gas filtration, molten polymer streams, or high-temperature catalytic processes where plastic or textile filters would fail.
How do I maintain and clean my sintered metal porous disc filter?
Maintenance is straightforward, contributing to the filter's long service life. Common cleaning methods include back-pulsing with clean gas or liquid, ultrasonic cleaning, and chemical soaking. The choice depends on the nature of the contaminant. For organic deposits, a heated caustic solution might be used, while inorganic scales may respond to acid cleaning. The robust nature of the sintered metal porous disc filter allows for these aggressive cleaning regimens, effectively restoring its permeability and performance for reuse.
Why should I choose POROYAL for my sintered metal filter needs?
Choosing POROYAL means partnering with a dedicated innovator in porous material technology. We are not just a supplier; we are an integrated engineering partner. Our dedicated R&D division focuses solely on advancing sintered porous filter technology. We provide comprehensive support from material selection and custom design to performance validation, ensuring the sintered metal filters you receive are not just components, but high-value solutions tailored to overcome your specific design and process challenges, enhancing your system's performance, efficiency, and success.
Ready to elevate your process with POROYAL's precision engineering? Contact us today to discuss how our sintered metal porous disc filters can deliver reliable, long-term performance for your application.
