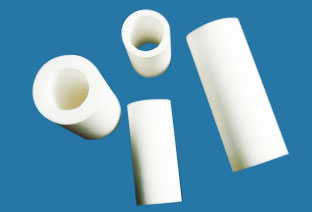

PTFE POROUS FILTERS

1. MATERIAL: PTFE POWDER
2. TECHNICAL DATA:

1) FILTER GRADES: 1μm - 50μm
2) POROSITY: 30%- 60%
3) WORKING TEMPERATURE MAX.: 200 ℃
4) COMPRESSIVE STRENGTH: Max. 6.5MPa
5) PRESSURE DROP: 1MPa MAX
6)ALLOWABLE WORKING ENVIRONMENT: ACID, ALKALI, ORGANIC SOLVENT, HIGH TEMPERATURE (200 C)

3.FORMING SHAPES:

1) SEAMLESS TUBES

SEAMLESS TUBES

OD, MM

ID, MM

L, MM

SMALLEST

20

14

-

LARGEST

50

40

200



FILTER GRADES: 1-5μm, 10-20μm, 30-50μm,





2) CUPS

CUPS

ID, MM

OD, MM

L, MM

MIN.

1

3

3

MAX

40

50

200
